DEM
Series

AKEA Machine

DEM Series

Fully automatic Double End Machining for bar and tube materials

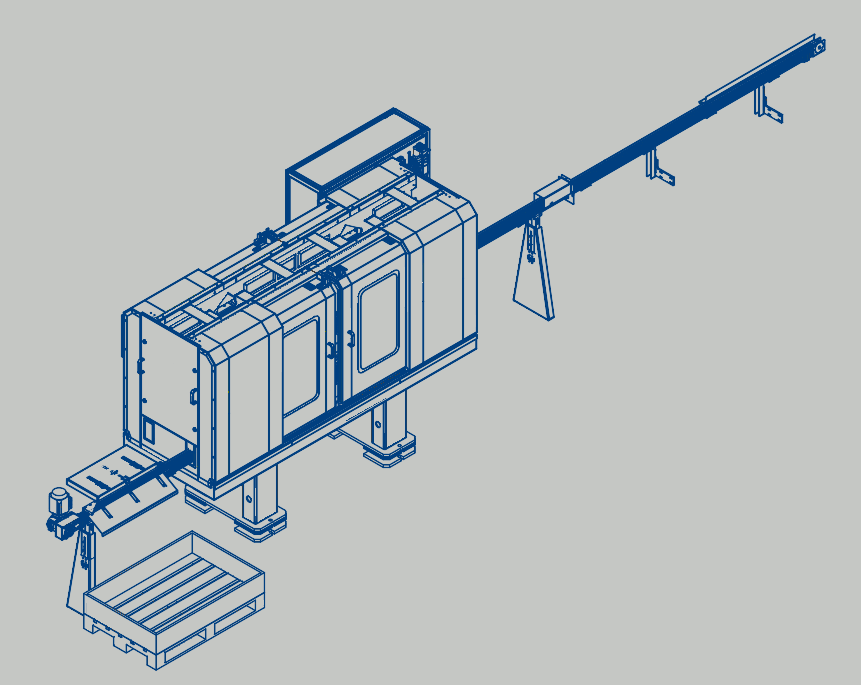

The AKEA DEM Series is a range of highly productive, fully automated metal-processing machines with rotating tools and a fast handling system that moves parts through the machine. The series is developed for high-volume end-machining operations on bar and tube materials.

Built to order

  • Spindles: 2 to 6
  • Vices: 1 to 6
  • Part length: 20mm to 1200mm
  • Output: 30 to 1200 parts/hour

BENEFITS

  • Both ends machined in the same cycle
  • Up to six spindles working simultaneously
  • Wide material range from ø4mm to ø300mm
  • Minimal setup time between products
  • Optional saw integration and automatic packing

OPERATIONS

  • Chamfering
  • turning
  • Peeling
  • Thread Rolling
  • Thread cutting
  • End machining
  • Drilling
  • Key milling
  • Cold forming

How it works in practice

Double end machining
The DEM Series works both ends of the part in the same cycle. Rotating tools and a fast handling system take the part through the machine.

Developed for high volume
The series is built for high volume end machining of bar and tube materials. Output runs from 30 to 1200 parts per hour.

Two to six spindles
The machines run 2 to 6 spindles working simultaneously. Spindle count follows the operations your part needs.

A wide range of operations
Turning, drilling, chamfering, peeling, thread rolling, thread cutting, key milling, end machining and cold forming. One machine covers the sequence.

Wide material range
Customer configurable for diameters from ø4mm to ø300mm and lengths from 20mm to 1200mm. That covers small components and long heavy bar alike.

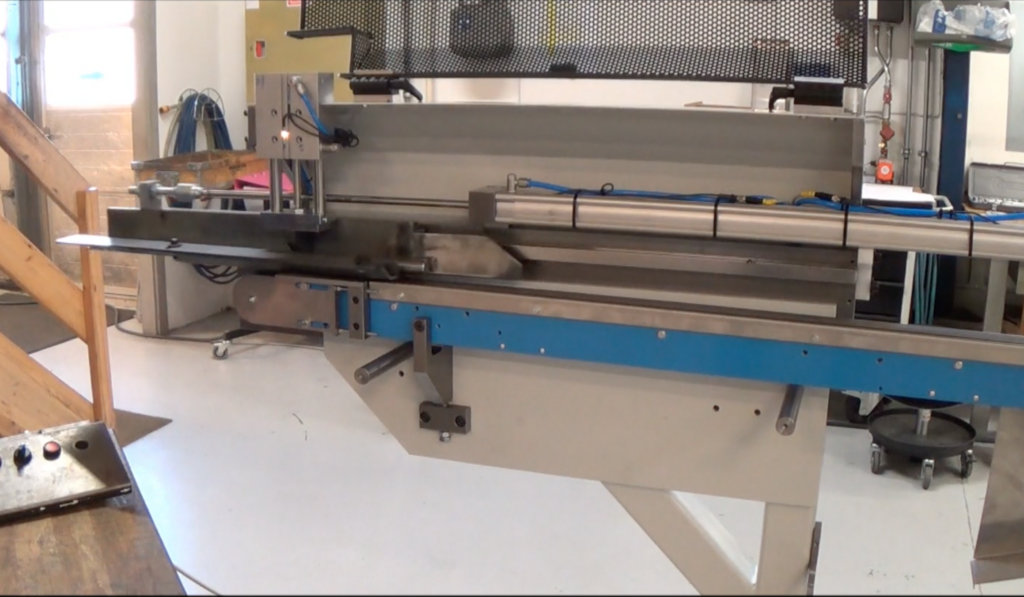

Fully automated handling
The integrated handling system takes parts in, through and out of the machine. The machining process runs without manual transfer.

Saw and packing options
The machines can be integrated with a wide range of saws. A fully automated part packing system is available as well.

Quick between products
The operator interface is intuitive and easy to operate. Setup time when changing between different products is minimal.

Built in Thisted, backed by AKEA
Every DEM machine is configured and built at AKEA in Thisted. The team that builds it handles the service and the spare parts.

AKEA Machine

DEM Series - Metal processing

The machines are double-end machines with two to six spindles working simultaneously. The machining concept provides high productivity and a wide range of machining options, including turning, drilling, chamfering, peeling, thread rolling, thread cutting, and key milling.

The integrated part-handling system moves parts into, through, and out of the machine, ensuring a fully automated machining process. Optionally, the machines can be integrated with a wide range of saws and delivered with a fully automated part-packing system.

The operator interface is intuitive and easy to use. Setup time when changing between products is minimal. The machines are customer-configurable for material diameters from ø4mm to ø300mm and lengths from 20mm to 1200mm.

Don’t hesitate to contact us for more information.
